COM-SS — Inch Stainless Spherical Bearings

Voller Korrosionsschutz; Laufbahn in 420 / 304 / 316 / 17-4 SS optional
Inch Stainless Spherical Bearings

Heat Treated Stainless Steel · Precision Ground · PTFE Lined · Inch Sizes

Gesamter Spezifikationsbereich

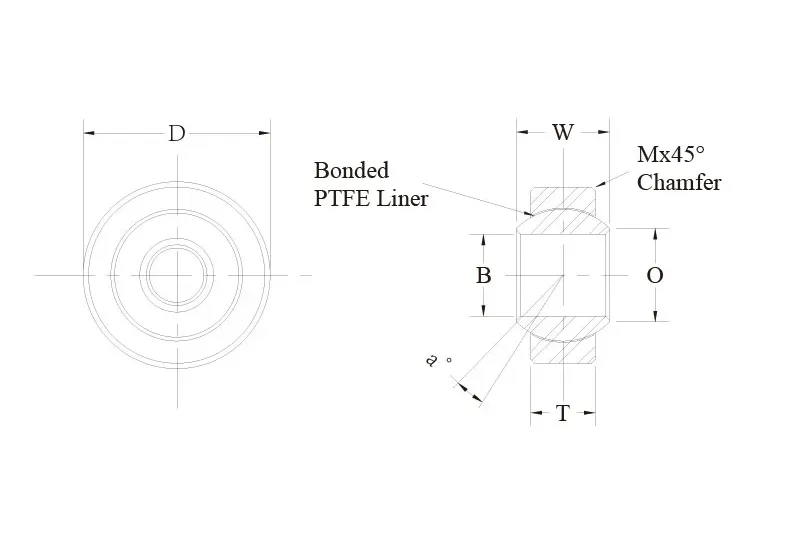

Image Views Included

Beliebiges B

Beliebiges N

B DIA.

D DIA.

Polyurethan

Polyurethan	B DIA.+.0015 -.0005	D DIA.+.0000 -.0005	W WIDTH+.005 -.005	T WIDTH+.005 -.005	O FLAT DIA.LÄNGE	M CHAMFERLÄNGE	BALL DIA.LÄNGE	a°REF. Statisch	STATICRADIAL LOAD CA.	WEIGHTMenge CA.
COM2T-SS	0.1650	0.4687	0.250	0.187	0.235	0.020	0.343	9.0	3,200	0.01
COM3T-SS	0.1900	0.5625	0.281	0.218	0.293	0.020	0.406	11.0	4,400	0.01
COM5T-SS	0.3125	0.7500	0.375	0.281	0.419	0.032	0.562	12.0	9,200	0.03
COM6T-SS	0.3750	0.8125	0.406	0.312	0.516	0.032	0.656	10.0	12,400	0.04
COM8T-SS	0.5000	1.0000	0.500	0.390	0.640	0.032	0.781	9.5	17,900	0.07
COM9T-SS	0.5625	1.0937	0.562	0.437	0.710	0.032	0.875	9.5	23,700	0.09
COM12T-SS	0.7500	1.4375	0.750	0.593	0.920	0.044	1.187	9.0	48,000	0.20
COM14T-SS	0.8750	1.5625	0.875	0.703	0.980	0.044	1.312	9.5	69,000	0.26

Spritzgegossen, verstärktes Nylon mit PTFE. 440C stainless steel, heat treated, precision ground, and hard chrome plated.
Chromoly-Stahl 4130, wärmebehandelt, hartverchromt. Stainless steel, heat treated, and PTFE lined as standard.
Verfügbare Bolzenvarianten: PTFE-lined stainless construction for lower-maintenance articulation and corrosion-resistant service.
Construction: COM-SS is the stainless precision-ground spherical bearing variant in inch sizes.

Race material: 420SS, 304SS, 316SS, and 17-4SS race options are available on request.
Series focus: COM-SS is intended for stainless spherical-bearing applications that require corrosion resistance and PTFE-lined articulation.
Configuration: this page covers the stainless COM-SS inch spherical bearing size range only.
