VERBINDUNGSSTANGE

LCR-258 Gestänge-Verbindungsstange 16.00 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8-24 Gelenkkopf-Bolzengewinde, Nylon-Laufbahn

Artikelnr.: LCR-258  ·  Adjustable motion-transfer assembly series
✓ ISO-9001-zertifiziert
✓ SGS-geprüft
✓ Fabrik mit über 26 Jahren Erfahrung
✓ OEM / ODM möglich

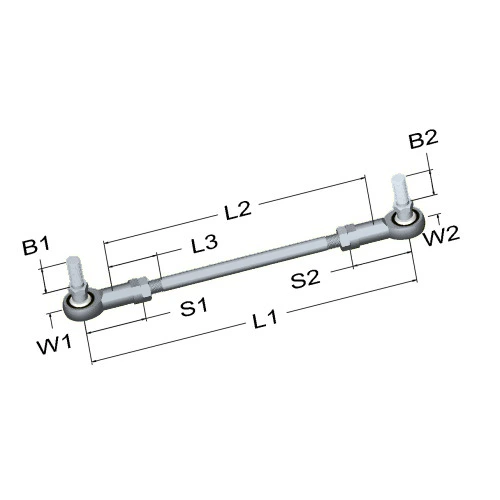

Thread: 3/8-24 RH/LH
Nominal Length: 16.00 in.
L1 Min / Max: 14.976–16.75 in.
A1 / A2: 0.375 / 0.375 in.
B1 / B2: 0.906 / 0.906 in.
W1 / W2: 0.644 / 0.644 in.
Gewicht
0.97 lbs
Material
Carbon steel; chromoly steel; aluminum alloy steel optional; stainless steel optional
Angebot anfordern →
Kostenlose Muster anfordern Zurück zur Spezifikationsseite
⚡ Antwort in der Regel innerhalb von 24 Stunden
Mindestmenge:50 pcs / model
Lieferzeit:7–15 days
Muster:Kostenlos (zzgl. Fracht)
Zahlung:T/T · PayPal · L/C
Überblick

Anlenkungs-Verbindungsstange — Produktübersicht

Die LCR-258 ist eine 16.00 in Verbindungsstange für verstellbare mechanische Gestänge, Steuerstangen und Bewegungsübertragungs-Baugruppen. Die Baugruppe verwendet 3/8-24 Rechtsgewinde/Linksgewinde-Geometrie mit 3/8-24 Gewinde-Gelenkkopf-Bolzen und Gelenkköpfen mit Nylon-Laufbahn. Maßangaben: L1 14.976-16.75 in, L2 14.25 in (Referenz), L3 2.75 in (typisch), A1/A2 0.375/0.375 in, B1/B2 0.906/0.906 in, S1/S2 1.625/1.625 in und W1/W2 0.644/0.644 in. Werkstoffoptionen: Kohlenstoffstahl, Chromoly-Stahl, optional Aluminiumlegierung und optional Edelstahl. Bestätigen Sie endgültigen Werkstoff, Oberfläche, Gewinderichtung und Zubehörkonfiguration bei der Anfrage an SYZ.

lcr-258-linkage-connecting-rod-16-00-in-3-8-24-rh-lh-thread-3-8-24-rod-end-stud-threads-nylon-race
Größentabelle

Anlenkungs-Verbindungsstange — Vollständiges Größenspektrum

Alle verfügbaren Größen der Serie Anlenkungs-Verbindungsstange. Ihre Größe nicht dabei? Kontaktieren Sie uns für Sondermaße.

TeilenummerWeight (lbs)GewindeNennlängeL1 MinL1 MaxA1A2B1B2L2 (ref)L3 (typ)S1S2W1W2
LCR-0010.733/8-24 RH/LH15.7513.87517.7500.3750.3750.8750.87513.5002.751.6251.6250.4380.438
LCR-0021.13/8-24 RH/LH27.7525.87529.7500.3750.3750.8750.87525.5002.751.6251.6250.4380.438
LCR-0030.633/8-24 RH/LH9.757.87511.7500.3750.3750.8750.8757.5002.7501.6251.6250.4380.438
LCR-0041.023/8-24 RH/LH22.5020.62524.5000.3750.3750.8750.87520.2502.751.6251.6250.4380.438
LCR-0050.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-0060.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0071.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-0081.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-0091.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-0100.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-0111.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0121.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-0131.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-0141.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-0150.693/8-24 RH/LH7.256.6267.750.3750.3750.9060.9065.2502.5001.6251.6250.6440.644
LCR-0161.093/8-24 RH/LH20.0019.37620.50.3750.3750.9060.90618.0002.751.6251.6250.6440.644
LCR-0171.483/8-24 RH/LH32.7532.12633.250.3750.3750.9060.90630.7502.751.6251.6250.6440.644
LCR-0180.813/8-24 RH/LH14.7514.12615.250.3750.3750.9060.90612.7502.751.6251.6250.6440.644
LCR-0191.193/8-24 RH/LH26.7526.12627.250.3750.3750.9060.90624.7502.751.6251.6250.6440.644
LCR-0201.071/2-2011.5010.87612.250.5010.5010.6250.6259.0003.252.1252.1250.5000.500
LCR-0211.191/2-207.506.8768.250.5010.5011.1251.1255.0002.252.1252.1250.8750.875
LCR-0222.071/2-2023.5022.87624.250.5010.5011.1251.12521.0003.252.1252.1250.8750.875
LCR-0230.753/8-24 RH/LH16.5014.62518.5000.3750.3750.8750.87514.252.751.6251.6250.4380.438
LCR-0241.143/8-24 RH/LH29.2527.37531.2500.3750.3750.8750.87527.0002.751.6251.6250.4380.438
LCR-0250.653/8-24 RH/LH10.508.62512.5000.3750.3750.8750.8758.2502.7501.6251.6250.4380.438
LCR-0261.043/8-24 RH/LH23.2521.37525.250.3750.3750.8750.87521.0002.751.6251.6250.4380.438
LCR-0270.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-0280.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0290.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0301.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-0311.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-0320.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-0331.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-0341.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-0351.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-0361.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-0370.723/8-24 RH/LH8.007.3768.50.3750.3750.9060.9066.0002.7501.6251.6250.6440.644
LCR-0381.113/8-24 RH/LH20.7520.12621.250.3750.3750.9060.90618.7502.751.6251.6250.6440.644
LCR-0391.553/8-24 RH/LH3534.37635.50.3750.3750.9060.90633.0002.751.6251.6250.6440.644
LCR-0400.843/8-24 RH/LH15.5014.876160.3750.3750.9060.90613.5002.751.6251.6250.6440.644
LCR-0411.213/8-24 RH/LH27.5026.876280.3750.3750.9060.90625.5002.751.6251.6250.6440.644
LCR-0421.181/2-2012.5011.87613.250.5010.5010.6250.62510.0003.252.1252.1250.5000.500
LCR-0431.251/2-208.507.8769.2500.5010.5011.1251.1256.0002.752.1252.1250.8750.875
LCR-0442.121/2-2024.5023.87625.250.5010.5011.1251.12522.0003.252.1252.1250.8750.875
LCR-0450.393/8-24 RH/LH6.005.9546.0000.3750.3750.8750.8751.750.6251.6251.6250.4380.438
LCR-0460.783/8-24 RH/LH17.2515.37519.250.3750.3750.8750.87515.0002.751.6251.6250.4380.438
LCR-0471.173/8-24 RH/LH30.0028.12532.0000.3750.3750.8750.87527.7502.751.6251.6250.4380.438
LCR-0480.673/8-24 RH/LH11.319.37513.2500.3750.3750.8750.8759.0002.7501.6251.6250.4380.438
LCR-0491.063/8-24 RH/LH24.0022.12526.0000.3750.3750.8750.87521.7502.751.6251.6250.4380.438
LCR-0501.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-0510.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0521.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-0530.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-0541.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-0550.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-0561.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-0571.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0581.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-0591.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-0600.743/8-24 RH/LH8.758.1269.250.3750.3750.9060.9066.7502.7501.6251.6250.6440.644
LCR-0611.043/8-24 RH/LH21.5020.876220.3750.3750.9060.90619.5002.751.6251.6250.6440.644
LCR-0621.623/8-24 RH/LH37.2536.62637.750.3750.3750.9060.90635.2502.751.6251.6250.6440.644
LCR-0630.863/8-24 RH/LH16.0014.97616.750.3750.3750.9060.90614.252.751.6251.6250.6440.644
LCR-0641.253/8-24 RH/LH29.0028.37629.50.3750.3750.9060.90627.0002.751.6251.6250.6440.644
LCR-0651.241/2-2013.5012.87614.250.5010.5010.6250.62511.0003.252.1252.1250.5000.500
LCR-0661.311/2-209.508.87610.250.5010.5011.1251.1257.0002.752.1252.1250.8750.875
LCR-0670.413/8-24 RH/LH6.255.9546.5000.3750.3750.8750.8752.2500.7501.6251.6250.4380.438
LCR-0680.83/8-24 RH/LH18.0016.12520.0000.3750.3750.8750.87515.7502.751.6251.6250.4380.438
LCR-0691.193/8-24 RH/LH30.7528.5002.750.3750.3750.8750.87528.5002.751.6251.6250.4380.438
LCR-0700.693/8-24 RH/LH12.7510.87514.7500.3750.3750.8750.8759.7502.7501.6251.6250.4380.438
LCR-0711.093/8-24 RH/LH24.7522.87526.7500.3750.3750.8750.87522.502.751.6251.6250.4380.438
LCR-0720.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-0730.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-0740.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-0751.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-0760.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-0770.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-0781.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0791.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-0800.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-0811.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-0820.923/8-24 RH/LH9.508.76100.3750.3750.9060.9067.5002.7501.6251.6250.6440.644
LCR-0831.163/8-24 RH/LH22.2521.62622.750.3750.3750.9060.90620.2502.751.6251.6250.6440.644
LCR-0840.483/8-24 RH/LH4.254.2044.30.3750.3750.9060.9061.750.6251.6251.6250.6440.644
LCR-0850.883/8-24 RH/LH17.0016.37617.50.3750.3750.9060.90615.0002.751.6251.6250.6440.644
LCR-0861.273/8-24 RH/LH29.7529.12630.250.3750.3750.9060.90627.7502.751.6251.6250.6440.644
LCR-0871.291/2-2014.5013.87615.250.5010.5010.6250.62512.0003.252.1252.1250.5000.500
LCR-0881.361/2-2010.509.87611.2500.5010.5011.1251.1258.0003.252.1252.1250.8750.875
LCR-0890.433/8-24 RH/LH6.505.95407.25000.3750.3750.8750.8753.0001.2501.6251.6250.4380.438
LCR-0900.823/8-24 RH/LH18.7516.87520.7500.3750.3750.8750.87516.502.751.6251.6250.4380.438
LCR-0911.213/8-24 RH/LH31.5029.62533.5000.3750.3750.8750.87529.2502.751.6251.6250.4380.438
LCR-0920.723/8-24 RH/LH13.2511.37515.2500.3750.3750.8750.87510.5002.7501.6251.6250.4380.438
LCR-0931.113/8-24 RH/LH25.5023.62527.5000.3750.3750.8750.87523.2502.751.6251.6250.4380.438
LCR-0940.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-0950.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0961.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-0970.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0981.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-0990.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-1000.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-1011.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-1021.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-1031.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1040.793/8-24 RH/LH10.259.62610.750.3750.3750.9060.9068.2502.7501.6251.6250.6440.644
LCR-1051.533/8-24 RH/LH2322.37623.50.3750.3750.9060.90621.0002.751.6251.6250.6440.644
LCR-1060.493/8-24 RH/LH4.504.54.70.3750.3750.9060.9062.2500.7501.6251.6250.6440.644
LCR-1070.833/8-24 RH/LH17.7517.12618.250.3750.3750.9060.90615.7502.751.6251.6250.6440.644
LCR-1081.33/8-24 RH/LH30.5029.876310.3750.3750.9060.90628.5002.751.6251.6250.6440.644
LCR-1091.361/2-2015.5014.87616.250.5010.5010.6250.62513.0003.252.1252.1250.5000.500
LCR-1101.361/2-2011.5010.87612.250.5010.5011.1251.1259.0003.252.1252.1250.8750.875
LCR-1110.453/8-24 RH/LH7.005.9548.0000.3750.3750.8750.8753.7501.5001.6251.6250.4380.438
LCR-1120.843/8-24 RH/LH19.5017.62521.5000.3750.3750.8750.87517.2502.751.6251.6250.4380.438
LCR-1131.243/8-24 RH/LH32.2530.37534.2500.3750.3750.8750.87530.0002.751.6251.6250.4380.438
LCR-1140.763/8-24 RH/LH14.2512.37516.2500.3750.3750.8750.87512.0002.7501.6251.6250.4380.438
LCR-1151.133/8-24 RH/LH26.5024.37528.5000.3750.3750.8750.87524.0002.751.6251.6250.4380.438
LCR-1161.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-1170.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-1181.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-1190.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-1201.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-1210.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-1221.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-1231.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1240.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-1251.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-1260.813/8-24 RH/LH11.0010.37611.50.3750.3750.9060.9069.0002.7501.6251.6250.6440.644
LCR-1271.23/8-24 RH/LH23.7523.12624.250.3750.3750.9060.90621.7502.751.6251.6250.6440.644
LCR-1280.513/8-24 RH/LH5.004.55.50.3750.3750.9060.9063.0001.2501.6251.6250.6440.644
LCR-1290.933/8-24 RH/LH18.5017.876190.3750.3750.9060.90616.502.751.6251.6250.6440.644
LCR-1301.323/8-24 RH/LH31.2530.62631.750.3750.3750.9060.90629.2502.751.6251.6250.6440.644
LCR-1311.41/2-2016.5015.87617.250.5010.5010.6250.62514.0003.252.1252.1250.5000.500
LCR-1321.461/2-2012.5011.87613.250.5010.5011.1251.12510.0003.252.1252.1250.8750.875
LCR-1330.483/8-24 RH/LH7.505.5949.5000.3750.3750.8750.8755.2502.5001.6251.6250.4380.438
LCR-1340.873/8-24 RH/LH20.5018.37522.5000.3750.3750.8750.87518.0002.751.6251.6250.4380.438
LCR-1351.263/8-24 RH/LH33.0031.12535.0000.3750.3750.8750.87530.7502.751.6251.6250.4380.438
LCR-1360.793/8-24 RH/LH15.0013.12517.0000.3750.3750.8750.87512.7502.751.6251.6250.4380.438
LCR-1371.153/8-24 RH/LH27.0025.12529.0000.3750.3750.8750.87524.7502.751.6251.6250.4380.438
LCR-1381.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-1390.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-1401.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-1411.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-1421.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-1430.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-1441.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-1451.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-1461.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-1471.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-1481.033/8-24 RH/LH11.7511.12612.250.3750.3750.9060.9069.7502.7501.6251.6250.6440.644
LCR-1491.233/8-24 RH/LH24.5023.876250.3750.3750.9060.90622.502.751.6251.6250.6440.644
LCR-1500.543/8-24 RH/LH5.755.1266.250.3750.3750.9060.9063.7501.5001.6251.6250.6440.644
LCR-1510.953/8-24 RH/LH19.2518.62619.750.3750.3750.9060.90617.2502.751.6251.6250.6440.644
LCR-1521.343/8-24 RH/LH32.0031.37632.500.3750.3750.9060.90630.0002.751.6251.6250.6440.644
LCR-1531.471/2-2017.5016.87618.2500.5010.5010.6250.62515.0003.252.1252.1250.5000.500
LCR-1541.521/2-2013.5012.87614.250.5010.5011.1251.12511.0003.252.1252.1250.8750.875
LCR-1550.53/8-24 RH/LH8.316.37510.2500.3750.3750.8750.8756.0002.7501.6251.6250.4380.438
LCR-1560.893/8-24 RH/LH21.0019.12523.0000.3750.3750.8750.87518.7502.751.6251.6250.4380.438
LCR-1571.333/8-24 RH/LH35.2533.37537.2500.3750.3750.8750.87533.0002.751.6251.6250.4380.438
LCR-1580.813/8-24 RH/LH15.7513.87517.7500.3750.3750.8750.87513.5002.751.6251.6250.4380.438
LCR-1591.183/8-24 RH/LH27.7525.87529.7500.3750.3750.8750.87525.5002.751.6251.6250.4380.438
LCR-1600.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-1610.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-1621.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-1631.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-1640.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-1650.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-1661.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-1671.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-1681.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1691.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-1701.073/8-24 RH/LH12.5011.876130.3750.3750.9060.90610.5002.7501.6251.6250.6440.644
LCR-1711.253/8-24 RH/LH25.2524.62625.750.3750.3750.9060.90623.2502.751.6251.6250.6440.644
LCR-1720.583/8-24 RH/LH7.256.6267.750.3750.3750.9060.9065.2502.5001.6251.6250.6440.644
LCR-1730.973/8-24 RH/LH20.0019.37620.50.3750.3750.9060.90618.0002.751.6251.6250.6440.644
LCR-1741.373/8-24 RH/LH32.7532.12633.250.3750.3750.9060.90630.7502.751.6251.6250.6440.644
LCR-1751.511/2-2018.5017.87619.2500.5010.5010.6250.62516.0003.252.1252.1250.5000.500
LCR-1761.571/2-2014.5013.87615.250.5010.5011.1251.12512.0003.252.1252.1250.8750.875
LCR-1770.523/8-24 RH/LH9.007.12511.0000.3750.3750.8750.8756.7502.7501.6251.6250.4380.438
LCR-1780.913/8-24 RH/LH21.7519.87523.7500.3750.3750.8750.87519.5002.751.6251.6250.4380.438
LCR-1791.43/8-24 RH/LH37.5035.62539.5000.3750.3750.8750.87535.2502.751.6251.6250.4380.438
LCR-1800.833/8-24 RH/LH16.5014.62518.5000.3750.3750.8750.87514.252.751.6251.6250.4380.438
LCR-1811.223/8-24 RH/LH29.2527.37531.2500.3750.3750.8750.87527.0002.751.6251.6250.4380.438
LCR-1821.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-1831.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-1840.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-1851.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-1861.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-1870.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-1881.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-1890.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-1901.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-1910.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-1921.273/8-24 RH/LH14.0013.37614.50.3750.3750.9060.90612.0002.7501.6251.6250.6440.644
LCR-1931.273/8-24 RH/LH2625.37626.50.3750.3750.9060.90624.0002.751.6251.6250.6440.644
LCR-1940.613/8-24 RH/LH8.007.3768.50.3750.3750.9060.9066.0002.7501.6251.6250.6440.644
LCR-19513/8-24 RH/LH20.7520.12621.250.3750.3750.9060.90618.7502.751.6251.6250.6440.644
LCR-1961.443/8-24 RH/LH3534.37635.50.3750.3750.9060.90633.0002.751.6251.6250.6440.644
LCR-1971.581/2-2019.5018.87620.250.5010.5010.6250.62517.0003.252.1252.1250.5000.500
LCR-1981.641/2-2015.5014.87616.250.5010.5011.1251.12513.0003.252.1252.1250.8750.875
LCR-1990.553/8-24 RH/LH9.757.87511.7500.3750.3750.8750.8757.5002.7501.6251.6250.4380.438
LCR-2000.943/8-24 RH/LH22.5020.62524.5000.3750.3750.8750.87520.2502.751.6251.6250.4380.438
LCR-2010.473/8-24 RH/LH6.005.9546.0000.3750.3750.8750.8751.750.6251.6251.6250.4380.438
LCR-2020.863/8-24 RH/LH17.2515.37519.250.3750.3750.8750.87515.0002.751.6251.6250.4380.438
LCR-2031.253/8-24 RH/LH30.0028.12532.0000.3750.3750.8750.87527.7502.751.6251.6250.4380.438
LCR-2040.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-2050.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-2061.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-2071.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-2081.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-2090.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-2100.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-2111.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-2121.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-2130.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2140.923/8-24 RH/LH14.7514.12615.250.3750.3750.9060.90612.7502.751.6251.6250.6440.644
LCR-2151.33/8-24 RH/LH26.7526.12627.250.3750.3750.9060.90624.7502.751.6251.6250.6440.644
LCR-2160.633/8-24 RH/LH8.758.1269.250.3750.3750.9060.9066.7502.7501.6251.6250.6440.644
LCR-2170.923/8-24 RH/LH21.5020.876220.3750.3750.9060.90619.5002.751.6251.6250.6440.644
LCR-2181.513/8-24 RH/LH37.2536.62637.750.3750.3750.9060.90635.2502.751.6251.6250.6440.644
LCR-2191.621/2-2020.5019.87621.250.5010.5010.6250.62518.0003.252.1252.1250.5000.500
LCR-2201.681/2-2016.5015.87617.250.5010.5011.1251.12514.0003.252.1252.1250.8750.875
LCR-2210.573/8-24 RH/LH10.508.62512.5000.3750.3750.8750.8758.2502.7501.6251.6250.4380.438
LCR-2220.963/8-24 RH/LH23.2521.37525.250.3750.3750.8750.87521.0002.751.6251.6250.4380.438
LCR-2230.493/8-24 RH/LH6.255.9546.5000.3750.3750.8750.8752.2500.7501.6251.6250.4380.438
LCR-2240.883/8-24 RH/LH18.0016.12520.0000.3750.3750.8750.87515.7502.751.6251.6250.4380.438
LCR-2251.273/8-24 RH/LH30.7528.5002.750.3750.3750.8750.87528.5002.751.6251.6250.4380.438
LCR-2261.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-2270.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-2281.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-2290.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-2300.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-2310.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-2321.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-2331.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-2341.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-2350.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2360.953/8-24 RH/LH15.5014.876160.3750.3750.9060.90613.5002.751.6251.6250.6440.644
LCR-2371.323/8-24 RH/LH27.5026.876280.3750.3750.9060.90625.5002.751.6251.6250.6440.644
LCR-2380.813/8-24 RH/LH9.508.76100.3750.3750.9060.9067.5002.7501.6251.6250.6440.644
LCR-2391.053/8-24 RH/LH22.2521.62622.750.3750.3750.9060.90620.2502.751.6251.6250.6440.644
LCR-2400.81/2-206.005.756.250.5010.5010.6250.6253.0001.2502.1252.1250.5000.500
LCR-2411.691/2-2021.5020.87622.250.5010.5010.6250.62519.0003.252.1252.1250.5000.500
LCR-2421.751/2-2017.5016.87618.2500.5010.5011.1251.12515.0003.252.1252.1250.8750.875
LCR-2430.593/8-24 RH/LH11.319.37513.2500.3750.3750.8750.8759.0002.7501.6251.6250.4380.438
LCR-2440.983/8-24 RH/LH24.0022.12526.0000.3750.3750.8750.87521.7502.751.6251.6250.4380.438
LCR-2450.513/8-24 RH/LH6.505.95407.25000.3750.3750.8750.8753.0001.2501.6251.6250.4380.438
LCR-2460.93/8-24 RH/LH18.7516.87520.7500.3750.3750.8750.87516.502.751.6251.6250.4380.438
LCR-2471.293/8-24 RH/LH31.5029.62533.5000.3750.3750.8750.87529.2502.751.6251.6250.4380.438
LCR-2481.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-2490.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-2501.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2511.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-2521.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-2530.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-2541.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-2551.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-2561.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-2570.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2580.973/8-24 RH/LH16.0014.97616.750.3750.3750.9060.90614.252.751.6251.6250.6440.644
LCR-2591.363/8-24 RH/LH29.0028.37629.50.3750.3750.9060.90627.0002.751.6251.6250.6440.644
LCR-2600.683/8-24 RH/LH10.259.62610.750.3750.3750.9060.9068.2502.7501.6251.6250.6440.644
LCR-2611.423/8-24 RH/LH2322.37623.50.3750.3750.9060.90621.0002.751.6251.6250.6440.644
LCR-2620.861/2-206.505.8767.250.5010.5010.6250.6254.0001.752.1252.1250.5000.500
LCR-2631.731/2-2022.5021.87623.250.5010.5010.6250.62520.0003.252.1252.1250.5000.500
LCR-2641.791/2-2018.5017.87619.2500.5010.5011.1251.12516.0003.252.1252.1250.8750.875
LCR-2650.613/8-24 RH/LH12.7510.87514.7500.3750.3750.8750.8759.7502.7501.6251.6250.4380.438
LCR-2661.013/8-24 RH/LH24.7522.87526.7500.3750.3750.8750.87522.502.751.6251.6250.4380.438
LCR-2670.533/8-24 RH/LH7.005.9548.0000.3750.3750.8750.8753.7501.5001.6251.6250.4380.438
LCR-2680.923/8-24 RH/LH19.5017.62521.5000.3750.3750.8750.87517.2502.751.6251.6250.4380.438
LCR-2691.323/8-24 RH/LH32.2530.37534.2500.3750.3750.8750.87530.0002.751.6251.6250.4380.438
LCR-2700.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-2711.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2721.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-2731.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-2741.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-2750.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-2761.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-2771.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-2781.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-2790.593/8-24 RH/LH4.254.2044.30.3750.3750.9060.9061.750.6251.6251.6250.6440.644
LCR-2800.993/8-24 RH/LH17.0016.37617.50.3750.3750.9060.90615.0002.751.6251.6250.6440.644
LCR-2811.393/8-24 RH/LH29.7529.12630.250.3750.3750.9060.90627.7502.751.6251.6250.6440.644
LCR-2820.73/8-24 RH/LH11.0010.37611.50.3750.3750.9060.9069.0002.7501.6251.6250.6440.644
LCR-2831.093/8-24 RH/LH23.7523.12624.250.3750.3750.9060.90621.7502.751.6251.6250.6440.644
LCR-2840.911/2-207.506.8768.250.5010.5010.6250.6255.0002.252.1252.1250.5000.500
LCR-2851.781/2-2023.5022.87624.250.5010.5010.6250.62521.0003.252.1252.1250.5000.500
LCR-2861.871/2-2019.5018.87620.250.5010.5011.1251.12517.0003.252.1252.1250.8750.875
LCR-2870.643/8-24 RH/LH13.2511.37515.2500.3750.3750.8750.87510.5002.7501.6251.6250.4380.438
LCR-2881.033/8-24 RH/LH25.5023.62527.5000.3750.3750.8750.87523.2502.751.6251.6250.4380.438
LCR-2890.563/8-24 RH/LH7.505.5949.5000.3750.3750.8750.8755.2502.5001.6251.6250.4380.438
LCR-2900.953/8-24 RH/LH20.5018.37522.5000.3750.3750.8750.87518.0002.751.6251.6250.4380.438
LCR-2911.343/8-24 RH/LH33.0031.12535.0000.3750.3750.8750.87530.7502.751.6251.6250.4380.438
LCR-2920.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-2931.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-2941.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-2951.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2961.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-2971.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-2981.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-2991.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-3001.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-3010.63/8-24 RH/LH4.504.54.70.3750.3750.9060.9062.2500.7501.6251.6250.6440.644
LCR-3020.943/8-24 RH/LH17.7517.12618.250.3750.3750.9060.90615.7502.751.6251.6250.6440.644
LCR-3031.413/8-24 RH/LH30.5029.876310.3750.3750.9060.90628.5002.751.6251.6250.6440.644
LCR-3040.923/8-24 RH/LH11.7511.12612.250.3750.3750.9060.9069.7502.7501.6251.6250.6440.644
LCR-3051.123/8-24 RH/LH24.5023.876250.3750.3750.9060.90622.502.751.6251.6250.6440.644
LCR-3060.971/2-208.507.8769.2500.5010.5010.6250.6256.0002.752.1252.1250.5000.500
LCR-3071.831/2-2024.5023.87625.250.5010.5010.6250.62522.0003.252.1252.1250.5000.500
LCR-3081.91/2-2020.5019.87621.250.5010.5011.1251.12518.0003.252.1252.1250.8750.875
LCR-3090.683/8-24 RH/LH14.2512.37516.2500.3750.3750.8750.87512.0002.7501.6251.6250.4380.438
LCR-3101.053/8-24 RH/LH26.5024.37528.5000.3750.3750.8750.87524.0002.751.6251.6250.4380.438
LCR-3110.583/8-24 RH/LH8.316.37510.2500.3750.3750.8750.8756.0002.7501.6251.6250.4380.438
LCR-3120.973/8-24 RH/LH21.0019.12523.0000.3750.3750.8750.87518.7502.751.6251.6250.4380.438
LCR-3131.413/8-24 RH/LH35.2533.37537.2500.3750.3750.8750.87533.0002.751.6251.6250.4380.438
LCR-3141.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-3150.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-3161.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-3171.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-3180.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-3190.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-3201.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-3211.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-3221.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-3230.633/8-24 RH/LH5.004.55.50.3750.3750.9060.9063.0001.2501.6251.6250.6440.644
LCR-3241.043/8-24 RH/LH18.5017.876190.3750.3750.9060.90616.502.751.6251.6250.6440.644
LCR-3251.433/8-24 RH/LH31.2530.62631.750.3750.3750.9060.90629.2502.751.6251.6250.6440.644
LCR-3260.963/8-24 RH/LH12.5011.876130.3750.3750.9060.90610.5002.7501.6251.6250.6440.644
LCR-3271.143/8-24 RH/LH25.2524.62625.750.3750.3750.9060.90623.2502.751.6251.6250.6440.644
LCR-3281.031/2-209.508.87610.250.5010.5010.6250.6257.0002.752.1252.1250.5000.500
LCR-3291.081/2-206.005.756.250.5010.5011.1251.1253.0001.2502.1252.1250.8750.875
LCR-3301.981/2-2021.5020.87622.250.5010.5011.1251.12519.0003.252.1252.1250.8750.875
LCR-3310.713/8-24 RH/LH15.0013.12517.0000.3750.3750.8750.87512.7502.751.6251.6250.4380.438
LCR-3321.073/8-24 RH/LH27.0025.12529.0000.3750.3750.8750.87524.7502.751.6251.6250.4380.438
LCR-3330.63/8-24 RH/LH9.007.12511.0000.3750.3750.8750.8756.7502.7501.6251.6250.4380.438
LCR-3340.993/8-24 RH/LH21.7519.87523.7500.3750.3750.8750.87519.5002.751.6251.6250.4380.438
LCR-3351.483/8-24 RH/LH37.5035.62539.5000.3750.3750.8750.87535.2502.751.6251.6250.4380.438
LCR-3361.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-3370.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-3381.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-3391.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-3401.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-3410.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-3421.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-3431.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-3441.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-3450.653/8-24 RH/LH5.755.1266.250.3750.3750.9060.9063.7501.5001.6251.6250.6440.644
LCR-3461.063/8-24 RH/LH19.2518.62619.750.3750.3750.9060.90617.2502.751.6251.6250.6440.644
LCR-3471.453/8-24 RH/LH32.0031.37632.500.3750.3750.9060.90630.0002.751.6251.6250.6440.644
LCR-3481.163/8-24 RH/LH14.0013.37614.50.3750.3750.9060.90612.0002.7501.6251.6250.6440.644
LCR-3491.163/8-24 RH/LH2625.37626.50.3750.3750.9060.90624.0002.751.6251.6250.6440.644
LCR-3501.071/2-2010.509.87611.2500.5010.5010.6250.6258.0003.252.1252.1250.5000.500
LCR-3511.141/2-206.505.8767.250.5010.5011.1251.1254.0001.752.1252.1250.8750.875
LCR-3522.011/2-2022.5021.87623.250.5010.5011.1251.12520.0003.252.1252.1250.8750.875
Qualitätskontrolle

Jede Einheit wird vor dem Versand geprüft

🔩

Wareneingangsprüfung

Materialzeugnisse geprüft. Die Zusammensetzung wird vor Beginn der Bearbeitung per Spektrometer bestätigt.

🔍

Gewindelehrenprüfung

100-%-Prüfung mit Gut-/Ausschuss-Lehre an allen Gewindeabschnitten. Keine Toleranz bei Maßabweichungen.

⚖️

Tragfähigkeitsprüfung

Statische und dynamische Belastungstests an repräsentativen Mustern aus jeder Fertigungscharge.

📏

Maßprüfung

KMG-Prüfung der kritischen Maße – Kugeldurchmesser, Bohrung, Gewindesteigung und Körperlänge.

🔬

Oberflächenprüfung

Sicht- und Tastprüfung auf Grate, Kratzer, Oberflächenrisse und Beschichtungsfehler.

🔄

Beweglichkeitsprüfung

Schwenkwinkel und Drehmoment werden gemessen, um zu bestätigen, dass die Leistung der Gleitschicht der Spezifikation entspricht.

🏆

Wärmebehandlungsprüfung

Härteprüfungen bestätigen die korrekte Wärmebehandlung der Chromoly-Stahlkörper und Lagerkugeln.

📋

Chargendokumentation

Lückenlose Rückverfolgbarkeit von der Schmelzennummer des Rohmaterials bis zum Fertigteil. Werkszeugnis (COC) und Prüfberichte verfügbar.

Anwendungen

Einsatzbereiche von Verbindungsstangen

Mechanische Steuergestänge

Verbindungsstangen übertragen Bewegung zwischen Hebeln, Wellen, Aktuatoren und Lenkern, während Gelenkköpfe an jeder Anbindung Winkeländerungen aufnehmen. Stimmen Sie Gesamtlänge und Endengeometrie auf den Mechanismus ab.

Lenk-, Fahrwerks- und Stabilisatorsysteme

Vormontierte oder gefertigte Verbindungsstangen können in Lenkungs- und Fahrwerkssystemen eingesetzt werden, wo exakte Länge und wiederholbare Endanbindungen wichtig sind. Prüfen Sie Gelenkausrichtung und Weg vor dem endgültigen Anziehen.

Landwirtschaftliche und industrielle Ausrüstung

Längere Gestängebaugruppen sind in Maschinensteuerungen, Landtechnikmechanismen und Industrieausrüstung üblich. Wählen Sie Laufring und Gelenkkopf-Werkstoff passend zu erwarteter Oszillation, Verschmutzung, Last und Wartungsplan.

Verwandte Produkte

Mehr aus der Serie Anlenkungs-Verbindungsstange Series

Alle Produkte →
lcr-345-linkage-connecting-rod-5-75-in-3-8-24-rh-lh-thread-3-8-24-rod-end-stud-threads-nylon-race

LCR-345 Gestänge-Verbindungsstange 5.75 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8-24 Gelenkkopf-Bolzengewinde, Nylon-Laufbahn

LCR-345

Produkt ansehen →
lcr-344-linkage-connecting-rod-26-00-in-3-8-24-rh-lh-thread-3-8-in-bores-bronze-race

LCR-344 Gestänge-Verbindungsstange 26.00 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8 in Bohrungen, Bronze-Laufbahn

LCR-344

Produkt ansehen →
lcr-343-linkage-connecting-rod-32-75-in-3-8-24-rh-lh-thread-3-8-in-bores-steel-race

LCR-343 Gestänge-Verbindungsstange 32.75 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8 in Bohrungen, Stahl-Laufbahn

LCR-343

Produkt ansehen →
lcr-342-linkage-connecting-rod-29-00-in-3-8-24-rh-lh-thread-3-8-in-bores-steel-race

LCR-342 Gestänge-Verbindungsstange 29.00 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8 in Bohrungen, Stahl-Laufbahn

LCR-342

Produkt ansehen →
Angebot anfordern

Angebot für die Serie Anlenkungs-Verbindungsstange anfordern

Nennen Sie uns Artikelnummer, benötigte Menge und besondere Material- oder Verpackungsanforderungen. Wir antworten innerhalb von 24 Stunden.

✉
⚡ Antwort in 24 Std.
🎁 Kostenlose Muster
🔒 NDA available
📦 Mindestmenge ab 50 Stk.
Optional: JPG, PNG, WEBP, GIF oder ZIP; bis zu 5 Dateien und insgesamt 20 MB.
FAQ

Anlenkungs-Verbindungsstange Häufige Fragen zu

Wo setzt man die Koppelstange LCR-258 ein?

Die LCR-258 ist eine Verbindungsstange mit 16.00 in Nennlänge für verstellbare mechanische Gestänge, Steuerstangen und Bewegungsübertragungs-Baugruppen, mit einem 3/8-24 RH/LH-Gewinde am Verbindungskörper und je einem 3/8-24-Gewindebolzen für den Gelenkkopf an beiden Enden, bestückt mit einem Gelenklager mit Nylon-Laufbahn, sodass die Einbaulänge fein justiert und jedes Ende schwenkbar gelagert werden kann.

Welchen einstellbaren Längenbereich bietet LCR-258?

Die LCR-258 hat einen Verstellbereich von 1–14.976 in über die Gesamtlänge L16.75, mit einer L2-Referenzlänge von 14.25 in und einem L3-üblichen Maß von 2.75 in, was über die 1.8/3-8 RH/LH-Gewindeenden insgesamt etwa 24 in Längenverstellung ergibt.

Welche Gelenkköpfe verwendet LCR-258?

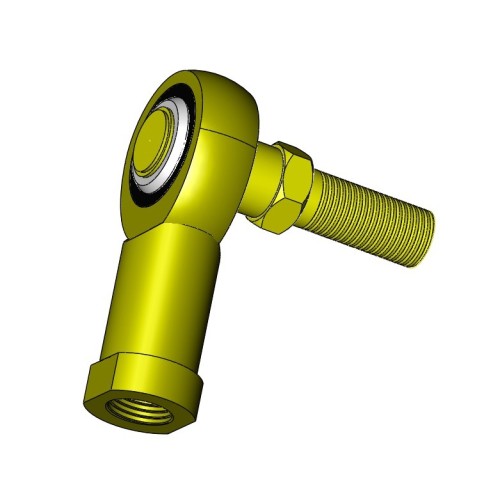

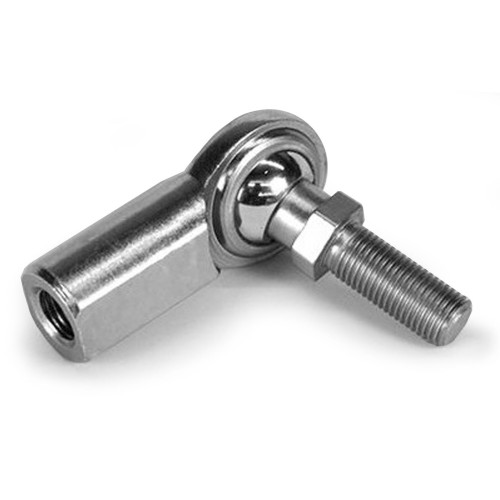

Jedes Ende der LCR-258 endet in einem 3/8-24-Gewindebolzen für den Gelenkkopf, bestückt mit einem Gelenkkopf-Gelenklager mit Nylon-Laufbahn, sodass sich die Stange für die Längenverstellung einschrauben und an jedem Schwenkpunkt bewegen lässt.

Ist LCR-258 auch in anderen Ausführungen als Standardstahl erhältlich?

Die Standardausführung besteht aus Karbonstahl. Chromoly-Stahl wird ebenfalls angeboten; Aluminiumlegierung und Edelstahl sind als optionale Werkstoffe erhältlich — bitte Werkstoff, Oberfläche und Gewinderichtung vor der Bestellung mit SYZ abklären.

Kann ich bei LCR-258 Linksgewinde und Rechtsgewinde kombinieren?

Ja. Die 3/8-24 RH/LH-Konfiguration bedeutet, dass ein Ende ein Rechtsgewinde und das andere ein Linksgewinde hat, ähnlich wie bei einem Spannschloss; durch Drehen des Mittelkörpers ändert sich die Einbaulänge, ohne dass ein Ende abgeschraubt werden muss.

Kann LCR-258 für ein OEM-Gestängeprojekt angepasst werden?

Ja. SYZ kann Nennlänge, Gewindegröße/-richtung, Endausführung und Werkstoff für OEM- oder kundenspezifische Gestängeprojekte anpassen — geben Sie Ihren gewünschten L1-Bereich und das Befestigungsgewinde bei der Angebotsanfrage für die LCR-258 an.

LCR-258 Gestänge-Verbindungsstange 16.00 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8-24 Gelenkkopf-Bolzengewinde, Nylon-Laufbahn
Anlenkungs-Verbindungsstange · LCR-258
50 pcs
Mindestbestellmenge
Gratismuster Angebot anfordern →
🍪
Wir verwenden Cookies
