LINKAGE ROD

LCR-015 Gestänge-Verbindungsstange 7.25 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8-24 Gelenkkopf-Bolzengewinde, Nylon-Laufbahn

Part No.: LCR-015  ·  Adjustable motion-transfer assembly series
✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready
Thread: 3/8-24 RH/LH
Nominal Length: 7.25 in.
L1 Min / Max: 6.626–7.75 in.
A1 / A2: 0.375 / 0.375 in.
B1 / B2: 0.906 / 0.906 in.
W1 / W2: 0.644 / 0.644 in.
Weight
0.69 lbs
Material
Carbon steel; chromoly steel; aluminum alloy steel optional; stainless steel optional
Get a Quote →
Request Free Sample Back to Spec. Page
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Überblick

Anlenkungs-Verbindungsstange — Produktübersicht

Die LCR-015 ist eine 7.25 in Verbindungsstange für verstellbare mechanische Gestänge, Steuerstangen und Bewegungsübertragungs-Baugruppen. Die Baugruppe verwendet 3/8-24 Rechtsgewinde/Linksgewinde-Geometrie mit 3/8-24 Gewinde-Gelenkkopf-Bolzen und Gelenkköpfen mit Nylon-Laufbahn. Maßangaben: L1 6.626-7.75 in, L2 5.250 in (Referenz), L3 2.500 in (typisch), A1/A2 0.375/0.375 in, B1/B2 0.906/0.906 in, S1/S2 1.625/1.625 in und W1/W2 0.644/0.644 in. Werkstoffoptionen: Kohlenstoffstahl, Chromoly-Stahl, optional Aluminiumlegierung und optional Edelstahl. Bestätigen Sie endgültigen Werkstoff, Oberfläche, Gewinderichtung und Zubehörkonfiguration bei der Anfrage an SYZ.

lcr-015-linkage-connecting-rod-7-25-in-3-8-24-rh-lh-thread-3-8-24-rod-end-stud-threads-nylon-race
Größentabelle

Anlenkungs-Verbindungsstange — Vollständiges Größenspektrum

All available sizes in the Anlenkungs-Verbindungsstange series. Can’t find your size? Contact us for custom dimensions.

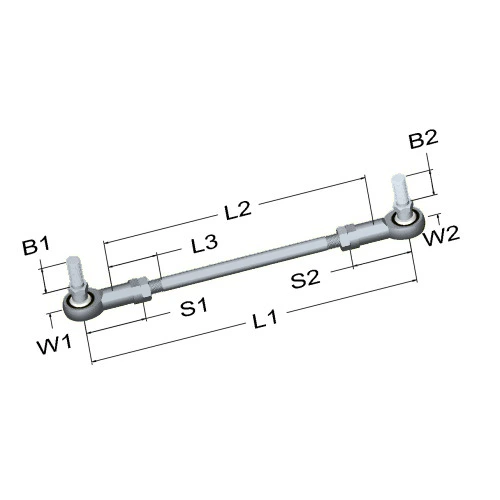

Part NumberWeight (lbs)ThreadNominal LengthL1 MinL1 MaxA1A2B1B2L2 (ref)L3 (typ)S1S2W1W2
LCR-0010.733/8-24 RH/LH15.7513.87517.7500.3750.3750.8750.87513.5002.751.6251.6250.4380.438
LCR-0021.13/8-24 RH/LH27.7525.87529.7500.3750.3750.8750.87525.5002.751.6251.6250.4380.438
LCR-0030.633/8-24 RH/LH9.757.87511.7500.3750.3750.8750.8757.5002.7501.6251.6250.4380.438
LCR-0041.023/8-24 RH/LH22.5020.62524.5000.3750.3750.8750.87520.2502.751.6251.6250.4380.438
LCR-0050.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-0060.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0071.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-0081.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-0091.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-0100.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-0111.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0121.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-0131.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-0141.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-0150.693/8-24 RH/LH7.256.6267.750.3750.3750.9060.9065.2502.5001.6251.6250.6440.644
LCR-0161.093/8-24 RH/LH20.0019.37620.50.3750.3750.9060.90618.0002.751.6251.6250.6440.644
LCR-0171.483/8-24 RH/LH32.7532.12633.250.3750.3750.9060.90630.7502.751.6251.6250.6440.644
LCR-0180.813/8-24 RH/LH14.7514.12615.250.3750.3750.9060.90612.7502.751.6251.6250.6440.644
LCR-0191.193/8-24 RH/LH26.7526.12627.250.3750.3750.9060.90624.7502.751.6251.6250.6440.644
LCR-0201.071/2-2011.5010.87612.250.5010.5010.6250.6259.0003.252.1252.1250.5000.500
LCR-0211.191/2-207.506.8768.250.5010.5011.1251.1255.0002.252.1252.1250.8750.875
LCR-0222.071/2-2023.5022.87624.250.5010.5011.1251.12521.0003.252.1252.1250.8750.875
LCR-0230.753/8-24 RH/LH16.5014.62518.5000.3750.3750.8750.87514.252.751.6251.6250.4380.438
LCR-0241.143/8-24 RH/LH29.2527.37531.2500.3750.3750.8750.87527.0002.751.6251.6250.4380.438
LCR-0250.653/8-24 RH/LH10.508.62512.5000.3750.3750.8750.8758.2502.7501.6251.6250.4380.438
LCR-0261.043/8-24 RH/LH23.2521.37525.250.3750.3750.8750.87521.0002.751.6251.6250.4380.438
LCR-0270.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-0280.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0290.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0301.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-0311.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-0320.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-0331.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-0341.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-0351.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-0361.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-0370.723/8-24 RH/LH8.007.3768.50.3750.3750.9060.9066.0002.7501.6251.6250.6440.644
LCR-0381.113/8-24 RH/LH20.7520.12621.250.3750.3750.9060.90618.7502.751.6251.6250.6440.644
LCR-0391.553/8-24 RH/LH3534.37635.50.3750.3750.9060.90633.0002.751.6251.6250.6440.644
LCR-0400.843/8-24 RH/LH15.5014.876160.3750.3750.9060.90613.5002.751.6251.6250.6440.644
LCR-0411.213/8-24 RH/LH27.5026.876280.3750.3750.9060.90625.5002.751.6251.6250.6440.644
LCR-0421.181/2-2012.5011.87613.250.5010.5010.6250.62510.0003.252.1252.1250.5000.500
LCR-0431.251/2-208.507.8769.2500.5010.5011.1251.1256.0002.752.1252.1250.8750.875
LCR-0442.121/2-2024.5023.87625.250.5010.5011.1251.12522.0003.252.1252.1250.8750.875
LCR-0450.393/8-24 RH/LH6.005.9546.0000.3750.3750.8750.8751.750.6251.6251.6250.4380.438
LCR-0460.783/8-24 RH/LH17.2515.37519.250.3750.3750.8750.87515.0002.751.6251.6250.4380.438
LCR-0471.173/8-24 RH/LH30.0028.12532.0000.3750.3750.8750.87527.7502.751.6251.6250.4380.438
LCR-0480.673/8-24 RH/LH11.319.37513.2500.3750.3750.8750.8759.0002.7501.6251.6250.4380.438
LCR-0491.063/8-24 RH/LH24.0022.12526.0000.3750.3750.8750.87521.7502.751.6251.6250.4380.438
LCR-0501.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-0510.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0521.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-0530.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-0541.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-0550.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-0561.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-0571.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0581.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-0591.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-0600.743/8-24 RH/LH8.758.1269.250.3750.3750.9060.9066.7502.7501.6251.6250.6440.644
LCR-0611.043/8-24 RH/LH21.5020.876220.3750.3750.9060.90619.5002.751.6251.6250.6440.644
LCR-0621.623/8-24 RH/LH37.2536.62637.750.3750.3750.9060.90635.2502.751.6251.6250.6440.644
LCR-0630.863/8-24 RH/LH16.0014.97616.750.3750.3750.9060.90614.252.751.6251.6250.6440.644
LCR-0641.253/8-24 RH/LH29.0028.37629.50.3750.3750.9060.90627.0002.751.6251.6250.6440.644
LCR-0651.241/2-2013.5012.87614.250.5010.5010.6250.62511.0003.252.1252.1250.5000.500
LCR-0661.311/2-209.508.87610.250.5010.5011.1251.1257.0002.752.1252.1250.8750.875
LCR-0670.413/8-24 RH/LH6.255.9546.5000.3750.3750.8750.8752.2500.7501.6251.6250.4380.438
LCR-0680.83/8-24 RH/LH18.0016.12520.0000.3750.3750.8750.87515.7502.751.6251.6250.4380.438
LCR-0691.193/8-24 RH/LH30.7528.5002.750.3750.3750.8750.87528.5002.751.6251.6250.4380.438
LCR-0700.693/8-24 RH/LH12.7510.87514.7500.3750.3750.8750.8759.7502.7501.6251.6250.4380.438
LCR-0711.093/8-24 RH/LH24.7522.87526.7500.3750.3750.8750.87522.502.751.6251.6250.4380.438
LCR-0720.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-0730.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-0740.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-0751.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-0760.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-0770.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-0781.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0791.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-0800.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-0811.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-0820.923/8-24 RH/LH9.508.76100.3750.3750.9060.9067.5002.7501.6251.6250.6440.644
LCR-0831.163/8-24 RH/LH22.2521.62622.750.3750.3750.9060.90620.2502.751.6251.6250.6440.644
LCR-0840.483/8-24 RH/LH4.254.2044.30.3750.3750.9060.9061.750.6251.6251.6250.6440.644
LCR-0850.883/8-24 RH/LH17.0016.37617.50.3750.3750.9060.90615.0002.751.6251.6250.6440.644
LCR-0861.273/8-24 RH/LH29.7529.12630.250.3750.3750.9060.90627.7502.751.6251.6250.6440.644
LCR-0871.291/2-2014.5013.87615.250.5010.5010.6250.62512.0003.252.1252.1250.5000.500
LCR-0881.361/2-2010.509.87611.2500.5010.5011.1251.1258.0003.252.1252.1250.8750.875
LCR-0890.433/8-24 RH/LH6.505.95407.25000.3750.3750.8750.8753.0001.2501.6251.6250.4380.438
LCR-0900.823/8-24 RH/LH18.7516.87520.7500.3750.3750.8750.87516.502.751.6251.6250.4380.438
LCR-0911.213/8-24 RH/LH31.5029.62533.5000.3750.3750.8750.87529.2502.751.6251.6250.4380.438
LCR-0920.723/8-24 RH/LH13.2511.37515.2500.3750.3750.8750.87510.5002.7501.6251.6250.4380.438
LCR-0931.113/8-24 RH/LH25.5023.62527.5000.3750.3750.8750.87523.2502.751.6251.6250.4380.438
LCR-0940.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-0950.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0961.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-0970.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0981.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-0990.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-1000.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-1011.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-1021.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-1031.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1040.793/8-24 RH/LH10.259.62610.750.3750.3750.9060.9068.2502.7501.6251.6250.6440.644
LCR-1051.533/8-24 RH/LH2322.37623.50.3750.3750.9060.90621.0002.751.6251.6250.6440.644
LCR-1060.493/8-24 RH/LH4.504.54.70.3750.3750.9060.9062.2500.7501.6251.6250.6440.644
LCR-1070.833/8-24 RH/LH17.7517.12618.250.3750.3750.9060.90615.7502.751.6251.6250.6440.644
LCR-1081.33/8-24 RH/LH30.5029.876310.3750.3750.9060.90628.5002.751.6251.6250.6440.644
LCR-1091.361/2-2015.5014.87616.250.5010.5010.6250.62513.0003.252.1252.1250.5000.500
LCR-1101.361/2-2011.5010.87612.250.5010.5011.1251.1259.0003.252.1252.1250.8750.875
LCR-1110.453/8-24 RH/LH7.005.9548.0000.3750.3750.8750.8753.7501.5001.6251.6250.4380.438
LCR-1120.843/8-24 RH/LH19.5017.62521.5000.3750.3750.8750.87517.2502.751.6251.6250.4380.438
LCR-1131.243/8-24 RH/LH32.2530.37534.2500.3750.3750.8750.87530.0002.751.6251.6250.4380.438
LCR-1140.763/8-24 RH/LH14.2512.37516.2500.3750.3750.8750.87512.0002.7501.6251.6250.4380.438
LCR-1151.133/8-24 RH/LH26.5024.37528.5000.3750.3750.8750.87524.0002.751.6251.6250.4380.438
LCR-1161.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-1170.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-1181.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-1190.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-1201.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-1210.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-1221.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-1231.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1240.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-1251.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-1260.813/8-24 RH/LH11.0010.37611.50.3750.3750.9060.9069.0002.7501.6251.6250.6440.644
LCR-1271.23/8-24 RH/LH23.7523.12624.250.3750.3750.9060.90621.7502.751.6251.6250.6440.644
LCR-1280.513/8-24 RH/LH5.004.55.50.3750.3750.9060.9063.0001.2501.6251.6250.6440.644
LCR-1290.933/8-24 RH/LH18.5017.876190.3750.3750.9060.90616.502.751.6251.6250.6440.644
LCR-1301.323/8-24 RH/LH31.2530.62631.750.3750.3750.9060.90629.2502.751.6251.6250.6440.644
LCR-1311.41/2-2016.5015.87617.250.5010.5010.6250.62514.0003.252.1252.1250.5000.500
LCR-1321.461/2-2012.5011.87613.250.5010.5011.1251.12510.0003.252.1252.1250.8750.875
LCR-1330.483/8-24 RH/LH7.505.5949.5000.3750.3750.8750.8755.2502.5001.6251.6250.4380.438
LCR-1340.873/8-24 RH/LH20.5018.37522.5000.3750.3750.8750.87518.0002.751.6251.6250.4380.438
LCR-1351.263/8-24 RH/LH33.0031.12535.0000.3750.3750.8750.87530.7502.751.6251.6250.4380.438
LCR-1360.793/8-24 RH/LH15.0013.12517.0000.3750.3750.8750.87512.7502.751.6251.6250.4380.438
LCR-1371.153/8-24 RH/LH27.0025.12529.0000.3750.3750.8750.87524.7502.751.6251.6250.4380.438
LCR-1381.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-1390.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-1401.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-1411.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-1421.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-1430.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-1441.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-1451.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-1461.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-1471.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-1481.033/8-24 RH/LH11.7511.12612.250.3750.3750.9060.9069.7502.7501.6251.6250.6440.644
LCR-1491.233/8-24 RH/LH24.5023.876250.3750.3750.9060.90622.502.751.6251.6250.6440.644
LCR-1500.543/8-24 RH/LH5.755.1266.250.3750.3750.9060.9063.7501.5001.6251.6250.6440.644
LCR-1510.953/8-24 RH/LH19.2518.62619.750.3750.3750.9060.90617.2502.751.6251.6250.6440.644
LCR-1521.343/8-24 RH/LH32.0031.37632.500.3750.3750.9060.90630.0002.751.6251.6250.6440.644
LCR-1531.471/2-2017.5016.87618.2500.5010.5010.6250.62515.0003.252.1252.1250.5000.500
LCR-1541.521/2-2013.5012.87614.250.5010.5011.1251.12511.0003.252.1252.1250.8750.875
LCR-1550.53/8-24 RH/LH8.316.37510.2500.3750.3750.8750.8756.0002.7501.6251.6250.4380.438
LCR-1560.893/8-24 RH/LH21.0019.12523.0000.3750.3750.8750.87518.7502.751.6251.6250.4380.438
LCR-1571.333/8-24 RH/LH35.2533.37537.2500.3750.3750.8750.87533.0002.751.6251.6250.4380.438
LCR-1580.813/8-24 RH/LH15.7513.87517.7500.3750.3750.8750.87513.5002.751.6251.6250.4380.438
LCR-1591.183/8-24 RH/LH27.7525.87529.7500.3750.3750.8750.87525.5002.751.6251.6250.4380.438
LCR-1600.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-1610.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-1621.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-1631.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-1640.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-1650.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-1661.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-1671.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-1681.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1691.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-1701.073/8-24 RH/LH12.5011.876130.3750.3750.9060.90610.5002.7501.6251.6250.6440.644
LCR-1711.253/8-24 RH/LH25.2524.62625.750.3750.3750.9060.90623.2502.751.6251.6250.6440.644
LCR-1720.583/8-24 RH/LH7.256.6267.750.3750.3750.9060.9065.2502.5001.6251.6250.6440.644
LCR-1730.973/8-24 RH/LH20.0019.37620.50.3750.3750.9060.90618.0002.751.6251.6250.6440.644
LCR-1741.373/8-24 RH/LH32.7532.12633.250.3750.3750.9060.90630.7502.751.6251.6250.6440.644
LCR-1751.511/2-2018.5017.87619.2500.5010.5010.6250.62516.0003.252.1252.1250.5000.500
LCR-1761.571/2-2014.5013.87615.250.5010.5011.1251.12512.0003.252.1252.1250.8750.875
LCR-1770.523/8-24 RH/LH9.007.12511.0000.3750.3750.8750.8756.7502.7501.6251.6250.4380.438
LCR-1780.913/8-24 RH/LH21.7519.87523.7500.3750.3750.8750.87519.5002.751.6251.6250.4380.438
LCR-1791.43/8-24 RH/LH37.5035.62539.5000.3750.3750.8750.87535.2502.751.6251.6250.4380.438
LCR-1800.833/8-24 RH/LH16.5014.62518.5000.3750.3750.8750.87514.252.751.6251.6250.4380.438
LCR-1811.223/8-24 RH/LH29.2527.37531.2500.3750.3750.8750.87527.0002.751.6251.6250.4380.438
LCR-1821.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-1831.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-1840.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-1851.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-1861.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-1870.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-1881.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-1890.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-1901.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-1910.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-1921.273/8-24 RH/LH14.0013.37614.50.3750.3750.9060.90612.0002.7501.6251.6250.6440.644
LCR-1931.273/8-24 RH/LH2625.37626.50.3750.3750.9060.90624.0002.751.6251.6250.6440.644
LCR-1940.613/8-24 RH/LH8.007.3768.50.3750.3750.9060.9066.0002.7501.6251.6250.6440.644
LCR-19513/8-24 RH/LH20.7520.12621.250.3750.3750.9060.90618.7502.751.6251.6250.6440.644
LCR-1961.443/8-24 RH/LH3534.37635.50.3750.3750.9060.90633.0002.751.6251.6250.6440.644
LCR-1971.581/2-2019.5018.87620.250.5010.5010.6250.62517.0003.252.1252.1250.5000.500
LCR-1981.641/2-2015.5014.87616.250.5010.5011.1251.12513.0003.252.1252.1250.8750.875
LCR-1990.553/8-24 RH/LH9.757.87511.7500.3750.3750.8750.8757.5002.7501.6251.6250.4380.438
LCR-2000.943/8-24 RH/LH22.5020.62524.5000.3750.3750.8750.87520.2502.751.6251.6250.4380.438
LCR-2010.473/8-24 RH/LH6.005.9546.0000.3750.3750.8750.8751.750.6251.6251.6250.4380.438
LCR-2020.863/8-24 RH/LH17.2515.37519.250.3750.3750.8750.87515.0002.751.6251.6250.4380.438
LCR-2031.253/8-24 RH/LH30.0028.12532.0000.3750.3750.8750.87527.7502.751.6251.6250.4380.438
LCR-2040.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-2050.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-2061.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-2071.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-2081.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-2090.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-2100.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-2111.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-2121.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-2130.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2140.923/8-24 RH/LH14.7514.12615.250.3750.3750.9060.90612.7502.751.6251.6250.6440.644
LCR-2151.33/8-24 RH/LH26.7526.12627.250.3750.3750.9060.90624.7502.751.6251.6250.6440.644
LCR-2160.633/8-24 RH/LH8.758.1269.250.3750.3750.9060.9066.7502.7501.6251.6250.6440.644
LCR-2170.923/8-24 RH/LH21.5020.876220.3750.3750.9060.90619.5002.751.6251.6250.6440.644
LCR-2181.513/8-24 RH/LH37.2536.62637.750.3750.3750.9060.90635.2502.751.6251.6250.6440.644
LCR-2191.621/2-2020.5019.87621.250.5010.5010.6250.62518.0003.252.1252.1250.5000.500
LCR-2201.681/2-2016.5015.87617.250.5010.5011.1251.12514.0003.252.1252.1250.8750.875
LCR-2210.573/8-24 RH/LH10.508.62512.5000.3750.3750.8750.8758.2502.7501.6251.6250.4380.438
LCR-2220.963/8-24 RH/LH23.2521.37525.250.3750.3750.8750.87521.0002.751.6251.6250.4380.438
LCR-2230.493/8-24 RH/LH6.255.9546.5000.3750.3750.8750.8752.2500.7501.6251.6250.4380.438
LCR-2240.883/8-24 RH/LH18.0016.12520.0000.3750.3750.8750.87515.7502.751.6251.6250.4380.438
LCR-2251.273/8-24 RH/LH30.7528.5002.750.3750.3750.8750.87528.5002.751.6251.6250.4380.438
LCR-2261.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-2270.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-2281.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-2290.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-2300.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-2310.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-2321.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-2331.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-2341.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-2350.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2360.953/8-24 RH/LH15.5014.876160.3750.3750.9060.90613.5002.751.6251.6250.6440.644
LCR-2371.323/8-24 RH/LH27.5026.876280.3750.3750.9060.90625.5002.751.6251.6250.6440.644
LCR-2380.813/8-24 RH/LH9.508.76100.3750.3750.9060.9067.5002.7501.6251.6250.6440.644
LCR-2391.053/8-24 RH/LH22.2521.62622.750.3750.3750.9060.90620.2502.751.6251.6250.6440.644
LCR-2400.81/2-206.005.756.250.5010.5010.6250.6253.0001.2502.1252.1250.5000.500
LCR-2411.691/2-2021.5020.87622.250.5010.5010.6250.62519.0003.252.1252.1250.5000.500
LCR-2421.751/2-2017.5016.87618.2500.5010.5011.1251.12515.0003.252.1252.1250.8750.875
LCR-2430.593/8-24 RH/LH11.319.37513.2500.3750.3750.8750.8759.0002.7501.6251.6250.4380.438
LCR-2440.983/8-24 RH/LH24.0022.12526.0000.3750.3750.8750.87521.7502.751.6251.6250.4380.438
LCR-2450.513/8-24 RH/LH6.505.95407.25000.3750.3750.8750.8753.0001.2501.6251.6250.4380.438
LCR-2460.93/8-24 RH/LH18.7516.87520.7500.3750.3750.8750.87516.502.751.6251.6250.4380.438
LCR-2471.293/8-24 RH/LH31.5029.62533.5000.3750.3750.8750.87529.2502.751.6251.6250.4380.438
LCR-2481.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-2490.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-2501.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2511.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-2521.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-2530.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-2541.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-2551.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-2561.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-2570.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2580.973/8-24 RH/LH16.0014.97616.750.3750.3750.9060.90614.252.751.6251.6250.6440.644
LCR-2591.363/8-24 RH/LH29.0028.37629.50.3750.3750.9060.90627.0002.751.6251.6250.6440.644
LCR-2600.683/8-24 RH/LH10.259.62610.750.3750.3750.9060.9068.2502.7501.6251.6250.6440.644
LCR-2611.423/8-24 RH/LH2322.37623.50.3750.3750.9060.90621.0002.751.6251.6250.6440.644
LCR-2620.861/2-206.505.8767.250.5010.5010.6250.6254.0001.752.1252.1250.5000.500
LCR-2631.731/2-2022.5021.87623.250.5010.5010.6250.62520.0003.252.1252.1250.5000.500
LCR-2641.791/2-2018.5017.87619.2500.5010.5011.1251.12516.0003.252.1252.1250.8750.875
LCR-2650.613/8-24 RH/LH12.7510.87514.7500.3750.3750.8750.8759.7502.7501.6251.6250.4380.438
LCR-2661.013/8-24 RH/LH24.7522.87526.7500.3750.3750.8750.87522.502.751.6251.6250.4380.438
LCR-2670.533/8-24 RH/LH7.005.9548.0000.3750.3750.8750.8753.7501.5001.6251.6250.4380.438
LCR-2680.923/8-24 RH/LH19.5017.62521.5000.3750.3750.8750.87517.2502.751.6251.6250.4380.438
LCR-2691.323/8-24 RH/LH32.2530.37534.2500.3750.3750.8750.87530.0002.751.6251.6250.4380.438
LCR-2700.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-2711.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2721.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-2731.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-2741.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-2750.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-2761.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-2771.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-2781.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-2790.593/8-24 RH/LH4.254.2044.30.3750.3750.9060.9061.750.6251.6251.6250.6440.644
LCR-2800.993/8-24 RH/LH17.0016.37617.50.3750.3750.9060.90615.0002.751.6251.6250.6440.644
LCR-2811.393/8-24 RH/LH29.7529.12630.250.3750.3750.9060.90627.7502.751.6251.6250.6440.644
LCR-2820.73/8-24 RH/LH11.0010.37611.50.3750.3750.9060.9069.0002.7501.6251.6250.6440.644
LCR-2831.093/8-24 RH/LH23.7523.12624.250.3750.3750.9060.90621.7502.751.6251.6250.6440.644
LCR-2840.911/2-207.506.8768.250.5010.5010.6250.6255.0002.252.1252.1250.5000.500
LCR-2851.781/2-2023.5022.87624.250.5010.5010.6250.62521.0003.252.1252.1250.5000.500
LCR-2861.871/2-2019.5018.87620.250.5010.5011.1251.12517.0003.252.1252.1250.8750.875
LCR-2870.643/8-24 RH/LH13.2511.37515.2500.3750.3750.8750.87510.5002.7501.6251.6250.4380.438
LCR-2881.033/8-24 RH/LH25.5023.62527.5000.3750.3750.8750.87523.2502.751.6251.6250.4380.438
LCR-2890.563/8-24 RH/LH7.505.5949.5000.3750.3750.8750.8755.2502.5001.6251.6250.4380.438
LCR-2900.953/8-24 RH/LH20.5018.37522.5000.3750.3750.8750.87518.0002.751.6251.6250.4380.438
LCR-2911.343/8-24 RH/LH33.0031.12535.0000.3750.3750.8750.87530.7502.751.6251.6250.4380.438
LCR-2920.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-2931.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-2941.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-2951.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2961.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-2971.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-2981.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-2991.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-3001.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-3010.63/8-24 RH/LH4.504.54.70.3750.3750.9060.9062.2500.7501.6251.6250.6440.644
LCR-3020.943/8-24 RH/LH17.7517.12618.250.3750.3750.9060.90615.7502.751.6251.6250.6440.644
LCR-3031.413/8-24 RH/LH30.5029.876310.3750.3750.9060.90628.5002.751.6251.6250.6440.644
LCR-3040.923/8-24 RH/LH11.7511.12612.250.3750.3750.9060.9069.7502.7501.6251.6250.6440.644
LCR-3051.123/8-24 RH/LH24.5023.876250.3750.3750.9060.90622.502.751.6251.6250.6440.644
LCR-3060.971/2-208.507.8769.2500.5010.5010.6250.6256.0002.752.1252.1250.5000.500
LCR-3071.831/2-2024.5023.87625.250.5010.5010.6250.62522.0003.252.1252.1250.5000.500
LCR-3081.91/2-2020.5019.87621.250.5010.5011.1251.12518.0003.252.1252.1250.8750.875
LCR-3090.683/8-24 RH/LH14.2512.37516.2500.3750.3750.8750.87512.0002.7501.6251.6250.4380.438
LCR-3101.053/8-24 RH/LH26.5024.37528.5000.3750.3750.8750.87524.0002.751.6251.6250.4380.438
LCR-3110.583/8-24 RH/LH8.316.37510.2500.3750.3750.8750.8756.0002.7501.6251.6250.4380.438
LCR-3120.973/8-24 RH/LH21.0019.12523.0000.3750.3750.8750.87518.7502.751.6251.6250.4380.438
LCR-3131.413/8-24 RH/LH35.2533.37537.2500.3750.3750.8750.87533.0002.751.6251.6250.4380.438
LCR-3141.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-3150.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-3161.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-3171.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-3180.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-3190.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-3201.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-3211.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-3221.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-3230.633/8-24 RH/LH5.004.55.50.3750.3750.9060.9063.0001.2501.6251.6250.6440.644
LCR-3241.043/8-24 RH/LH18.5017.876190.3750.3750.9060.90616.502.751.6251.6250.6440.644
LCR-3251.433/8-24 RH/LH31.2530.62631.750.3750.3750.9060.90629.2502.751.6251.6250.6440.644
LCR-3260.963/8-24 RH/LH12.5011.876130.3750.3750.9060.90610.5002.7501.6251.6250.6440.644
LCR-3271.143/8-24 RH/LH25.2524.62625.750.3750.3750.9060.90623.2502.751.6251.6250.6440.644
LCR-3281.031/2-209.508.87610.250.5010.5010.6250.6257.0002.752.1252.1250.5000.500
LCR-3291.081/2-206.005.756.250.5010.5011.1251.1253.0001.2502.1252.1250.8750.875
LCR-3301.981/2-2021.5020.87622.250.5010.5011.1251.12519.0003.252.1252.1250.8750.875
LCR-3310.713/8-24 RH/LH15.0013.12517.0000.3750.3750.8750.87512.7502.751.6251.6250.4380.438
LCR-3321.073/8-24 RH/LH27.0025.12529.0000.3750.3750.8750.87524.7502.751.6251.6250.4380.438
LCR-3330.63/8-24 RH/LH9.007.12511.0000.3750.3750.8750.8756.7502.7501.6251.6250.4380.438
LCR-3340.993/8-24 RH/LH21.7519.87523.7500.3750.3750.8750.87519.5002.751.6251.6250.4380.438
LCR-3351.483/8-24 RH/LH37.5035.62539.5000.3750.3750.8750.87535.2502.751.6251.6250.4380.438
LCR-3361.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-3370.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-3381.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-3391.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-3401.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-3410.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-3421.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-3431.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-3441.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-3450.653/8-24 RH/LH5.755.1266.250.3750.3750.9060.9063.7501.5001.6251.6250.6440.644
LCR-3461.063/8-24 RH/LH19.2518.62619.750.3750.3750.9060.90617.2502.751.6251.6250.6440.644
LCR-3471.453/8-24 RH/LH32.0031.37632.500.3750.3750.9060.90630.0002.751.6251.6250.6440.644
LCR-3481.163/8-24 RH/LH14.0013.37614.50.3750.3750.9060.90612.0002.7501.6251.6250.6440.644
LCR-3491.163/8-24 RH/LH2625.37626.50.3750.3750.9060.90624.0002.751.6251.6250.6440.644
LCR-3501.071/2-2010.509.87611.2500.5010.5010.6250.6258.0003.252.1252.1250.5000.500
LCR-3511.141/2-206.505.8767.250.5010.5011.1251.1254.0001.752.1252.1250.8750.875
LCR-3522.011/2-2022.5021.87623.250.5010.5011.1251.12520.0003.252.1252.1250.8750.875
Qualitätskontrolle

Jede Einheit wird vor dem Versand geprüft

🔩

Raw Material Inspection

Material certifications verified. Composition confirmed by spectrometer before machining begins.

🔍

Thread Gauge Inspection

100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.

⚖️

Load Capacity Test

Static and dynamic load tests run on representative samples from each production batch.

📏

Dimensional Measurement

CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.

🔬

Surface Inspection

Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.

🔄

Articulation Test

Misalignment angle and torque measured to confirm liner performance meets specification.

🏆

Heat Treatment Verify

Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.

📋

Batch Documentation

Full traceability from raw material heat number to finished part. COC and inspection reports available.

Applications

Where Linkage Rods Are Used

Mechanical Control Linkages

Connecting rods transfer motion between levers, shafts, actuators, and control arms while rod ends accommodate angular change at each attachment. Match overall length and end geometry to the mechanism.

Steering, Suspension & Stabilizer Systems

Preassembled or fabricated linkage rods can be used in steering and suspension systems where accurate length and repeatable end connections are important. Check joint orientation and travel before final tightening.

Agricultural and Industrial Equipment

Longer linkage assemblies are common in machine controls, agricultural mechanisms, and industrial equipment. Select the race and rod-end material for the expected oscillation, contamination, load, and maintenance plan.

Verwandte Produkte

Mehr aus der Serie Anlenkungs-Verbindungsstange Series

All Products →
lcr-345-linkage-connecting-rod-5-75-in-3-8-24-rh-lh-thread-3-8-24-rod-end-stud-threads-nylon-race

LCR-345 Gestänge-Verbindungsstange 5.75 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8-24 Gelenkkopf-Bolzengewinde, Nylon-Laufbahn

LCR-345

View Product →
lcr-344-linkage-connecting-rod-26-00-in-3-8-24-rh-lh-thread-3-8-in-bores-bronze-race

LCR-344 Gestänge-Verbindungsstange 26.00 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8 in Bohrungen, Bronze-Laufbahn

LCR-344

View Product →
lcr-343-linkage-connecting-rod-32-75-in-3-8-24-rh-lh-thread-3-8-in-bores-steel-race

LCR-343 Gestänge-Verbindungsstange 32.75 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8 in Bohrungen, Stahl-Laufbahn

LCR-343

View Product →
lcr-342-linkage-connecting-rod-29-00-in-3-8-24-rh-lh-thread-3-8-in-bores-steel-race

LCR-342 Gestänge-Verbindungsstange 29.00 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8 in Bohrungen, Stahl-Laufbahn

LCR-342

View Product →
Angebot anfordern

Angebot für die Serie Anlenkungs-Verbindungsstange anfordern

Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.

✉
⚡ Reply in 24 hrs
🎁 Free samples
🔒 NDA available
📦 MOQ from 50 pcs
Optional: JPG, PNG, WEBP, GIF or ZIP; up to 5 files and 20 MB total.
FAQ

Anlenkungs-Verbindungsstange Häufige Fragen zu

Für welche Anwendungen ist LCR-015 ausgelegt?

Die LCR-015 ist eine Verbindungsstange mit 7.25 in Nennlänge für verstellbare mechanische Gestänge, Steuerstangen und Bewegungsübertragungs-Baugruppen, mit einem 3/8-24 RH/LH-Gewinde am Verbindungskörper und je einem 3/8-24-Gewindebolzen für den Gelenkkopf an beiden Enden, bestückt mit einem Gelenklager mit Nylon-Laufbahn, sodass die Einbaulänge fein justiert und jedes Ende schwenkbar gelagert werden kann.

Wie wird die Einbaulänge von LCR-015 verstellt?

Die LCR-015 hat einen Verstellbereich von 1–6.626 in über die Gesamtlänge L7.75, mit einer L2-Referenzlänge von 5.250 in und einem L3-üblichen Maß von 2.500 in, was über die 1.1/3-8 RH/LH-Gewindeenden insgesamt etwa 24 in Längenverstellung ergibt.

Welche Gelenkköpfe verwendet LCR-015?

Jedes Ende der LCR-015 endet in einem 3/8-24-Gewindebolzen für den Gelenkkopf, bestückt mit einem Gelenkkopf-Gelenklager mit Nylon-Laufbahn, sodass sich die Stange für die Längenverstellung einschrauben und an jedem Schwenkpunkt bewegen lässt.

In welchen Materialausführungen ist LCR-015 erhältlich?

Die Standardausführung besteht aus Karbonstahl. Chromoly-Stahl wird ebenfalls angeboten; Aluminiumlegierung und Edelstahl sind als optionale Werkstoffe erhältlich — bitte Werkstoff, Oberfläche und Gewinderichtung vor der Bestellung mit SYZ abklären.

Wie funktioniert die RH/LH-Ausführung (Rechts-/Linksgewinde) an LCR-015 zur Längenverstellung?

Die 3/8-24 RH/LH-Konfiguration hat ein Rechtsgewinde an einem Ende und ein Linksgewinde am anderen, ähnlich wie bei einem Spannschloss; beim Drehen des Mittelkörpers werden beide Enden gemeinsam hinein- oder herausgedreht, wodurch sich die Einbaulänge ändert, ohne dass ein Ende abgeschraubt werden muss.

Bietet SYZ für LCR-015 Sonderlängen oder Gewindeoptionen an?

Ja. SYZ kann Nennlänge, Gewindegröße/-richtung, Endausführung und Werkstoff für OEM- oder kundenspezifische Gestängeprojekte anpassen — geben Sie Ihren gewünschten L1-Bereich und das Befestigungsgewinde bei der Angebotsanfrage für die LCR-015 an.

LCR-015 Gestänge-Verbindungsstange 7.25 in, 3/8-24 Rechtsgewinde/Linksgewinde, 3/8-24 Gelenkkopf-Bolzengewinde, Nylon-Laufbahn
Anlenkungs-Verbindungsstange · LCR-015
50 pcs
Min. Order
Free Sample Get a Quote →
🍪
We Use Cookies
